Lifting Magnets – MCA

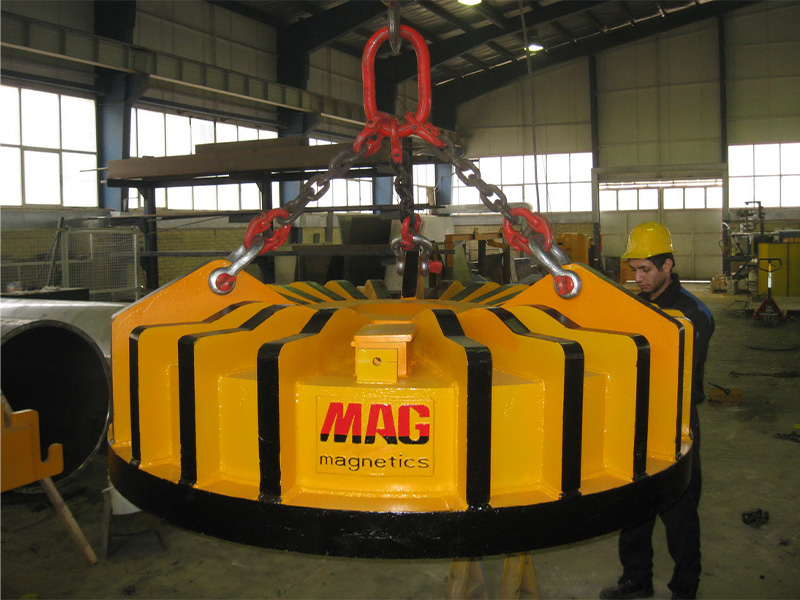

MCA Lifting Magnet series based on many years of experience has been optimized by computerized calculation methods in order to reach to the strong magnetic fields, robust body structures, and a high safety performance. MCA lifting magnet with deep magnetic flow is created by the designated magnet coil, substantially the operation capacity increased in comparison to the magnet weight to utilize the capacity of crane with maximum Load handling. MAG Group’s lifting magnets have been designed in a normal field, super field and extreme field to properly supply different applications.

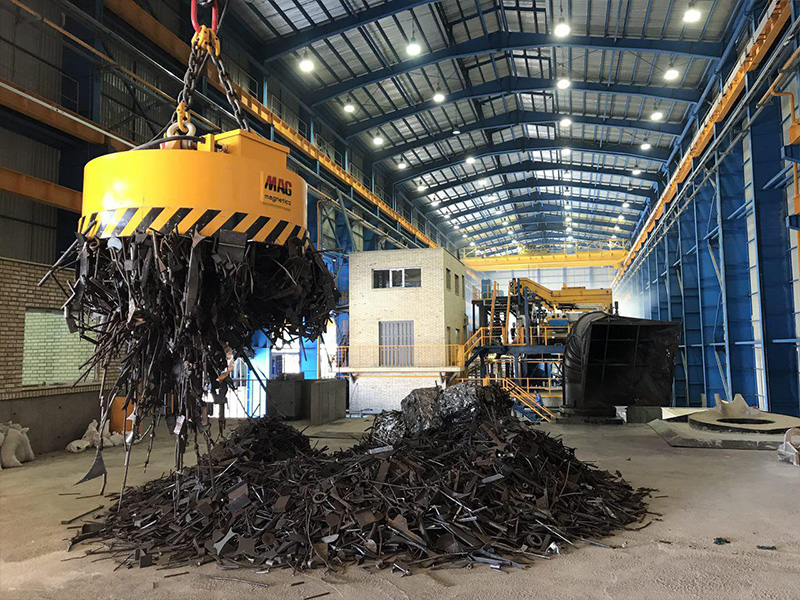

  • Scrap and Pig Iron handling are principal applications of the MCA lifting magnets. The exciter coil winds in different options, could be Al/Cu Strip conductor which is insulated by fibreglass cover or Al/Cu Foil Conductor with Mica insulation paper and in special cases can be finished by an Anodized Aluminium Strip conductor.
  • The coil of the magnet is being fixed by compound resin with excellent heat conductivity coefficient
  • To increase the lifetime of the magnet, rectifier panel is equipped with a PLC to monitor the inside temperature and duty factor of the magnet and monitors current of the magnet to protect the panel against output short-circuit accidents
  • The accessories equipment include the cable reel, suspension chains and power supply socket
  • MAG Group supplies special lifting magnets for skull cracker ball handling, hot material handling, direct furnace charging as well as the waterproof type for underwater services
